LIGHTWEIGHT, COMPACT, PORTABLE MAGNETIC DRILL STAND
Easy-to-use Kanetec Magbore Drill Guides offer sure, positive, firm footing for your next precision drill jobs. It has the portability of a hand held drill, with the accuracy and stability of a drill press. It gives you a portable machine shop for in-house or on-site projects. Plus, it is easy to maneuver and position into areas of restricted accessibility; and, once it is set, it will magnetically hold to the most precise drilling position even on plates as thin as 1/5 inch.
Regular List Price $750.00
Click for Magbore details
SPECIAL LIMITED SALE – DIRECT ORDERS ONLY!
(Prices and specifications subject to change without notice.)
PERMANENT MAGNETIC LIFMA Lifting Magnet (Model LPH)
The new model is released, which is made smaller and lighter, and which handle rotating operation for thinner sheets lighter, and the safety performance is facilitated by which safety stopper is equipped.
Model Lift (Flat) Lift (Round) Price LPH 150 330-lbs 220-lbs $750.00 LPH 300 660-lbs 440-lbs $1,200.00 LPH 600 1,323-lbs 881-lbs $2,100.00 LPH 1000 2,205-lbs 1,323-lbs $3,600.00 LPH 1500 3,307-lbs 1,764-lbs $4,800.00 LPH 2000 4,400-lbs 1,984=lbs $6,500.00
Click for Lifting Magnets details
Separates and removes steel/iron grindings from grinding coolant, for improved performance and cost savings in coolant life. AC240V or AC480V.
Click for MAGCLEAN details
Compact, portable hand held digital Tesla-Gauss meter with large LCD display. Essential tool for any technical or inspection environment. Analyze circuits, components, measure residual magnetism in raw material and finished parts. Measures DC and AC fields.
The highly reputable TM series has moved a step forward with new functions of measurement and inspection.
Click for Tesla Meter details
Models: MB-PS, MB-PM, MB-PSL, MB-PSX
Compact in size, yet it delivers a strong magnetic force.
Click for Mini MagBase details
Standard Magnetic Base
Model: MB-BIncrease precision and improve working efficiencyApplicationAs an auxiliary tool for general measurements, these bases can increase precision and improve working efficiency. A wide veriety of models are available, from mini size to large sizes, including deluxe types to meet every specific need.FeaturesThe magnetic base can hold a measuring device, such as dial gauge, for general measurements or diverse measurements, as in machining workshops.With a powerful magnetic force, it can be held on vertical faces, up side down, or by round bar.
Regular List Price $43.00
Click for Standard Magnetic Base
Magnetic Holder Bases
Models [MB-PB, MB-PR, MB-PL, MB-PG]Compact in size, yet it delivers a strong magnetic force.ApplicationAvailable in a wide range of sizes from minimum and medium to large.
These on-off switchable magnetic holder bases meet various application.
Usable as a tacking base for equipment, and/or a measuring base for
laser use (by installing jigs in the screw holes or, if necessary, with slight
additional machining).Features• Compact in size, yet it delivers a strong magnetic force.
• Either a V-slit and/or flat attractive surface is provided. The face opposite to the changeover switch face is also attractive.
• Although screw holes are provided, additional machining is possible; to widen the range of uses as a tacking base or temporary 34 installation leg.Specifications
Model Holding Power Width Length Height Tapped Hole Weight MB-PB 80kgf 1.96” 2.28” 2.16” 0.31x0.04x0.27 2.2lbs MB-PR 100kfg 1.96” 2.78” 2.16” 0.31x0.04x0.27 2.8lbs MB-PL 130kfg 1.96” 4.60” 2.16” 0.39x0.04x0.27 4.4lbs MB-PG 150kfg 2.36” 4.72” 2.04” 0.31x0.04x0.27 5.5lbs
Catalog No. Description List Price MB-PB
Magnetic Holder Base (80kgf) (1.96x2.28x2.16)
$30.00 MB-PR Magnetic Holder Base (100kfg) (1.96x2.78x2.16) $58.00 MB-PL Magnetic Holder Base (130kfg) (1.96x4.60x2.16) $106.00 MB-PG Magnetic Holder Base (150kfg) (2.36x4.72x2.04) $120.00
Click for Magnetic Holder Bases
Model MB-F2 with 360° swivel main baseThe magnetic base can hold a measuring device, such as dial gauge, for general measurements or diverse measurements.Application
As an auxiliary tool for general measurements, these bases can increase precision and improve working efficiency.
A wide veriety of models are available, from mini size to large sizes, including deluxe types to meet every specific need.Features• The magnetic base can hold a measuring device, such as dial gauge, for general measurements or diverse measurements, as in machining workshops.
• With a powerful magnetic force, it can be held on vertical faces, up side down, or by round bar.Specifications
Mag Base MainPole Sub Pole Model Holding Power Width Length Height Dia. Length Dia Length MB-F2 80kgf 1.96 2.28 2.16 0.47 7.63 0.39 6.49
Screw Threads Clamp Hole Model Mag base Main Pole Dia Weight Features MB-F2 0.31x0.04 0.31x0.04 0.17x0.25 3.7lbs Main ploe 360º turning, can be locked at 75º maximum
Catalog No. Description List Price MB-F2
Magnetic Base with 360° swivel main base
Click for Magnetic Base
"Square" Magnetic Bases
Models MB-L [MB-L-45C, MB-L-65C, MB-L-90C]Thin and powerful magnetic forceApplication
An ideal accessory for optical tables and breadboards.
Reduces experimental set-up time by allowing free positioning and instant clamp down of optical components.
Switchable ON-OFF magnetic circuit permits fine adjustment and precise positioning.Features• Easy ON-OFF operation using the lever.
• Thin and powerful magnetic force.
• Generous array of tap holes.Specifications
Model Holding Power Width Length Height Tapped Hole Weight MB-L-45C 6.5kgf 1.77 1.77 0.78 0.15x0.23x0.98 0.6lbs MB-L-65C 20kgf 2.55 2.55 0.78 0.15x0.23x0.98 1.3lbs MB-L-90C 25kgf 3.54 3.54 0.78 0.15x0.23x0.98 2.6lbs
Catalog No. Description List Price MB-L-45C Square Magnetic base ( 6.5kgf) $96.00 MB-L-65C Square Magnetic base ( 20kgf) $110.00 MB-L-90C Square Magnetic base ( 25kgf) $130.00
Click for "Square" Magnetic Bases
Magnetic V-Holder Model KVA
Model KVA Models [KVA-1, KVA-2]The module design for light weight and easy handling.ApplicationHolding tools for round bar marking, drilling, tapping and grinding of irregular-shaped work pieces.
Holding tools for electric discharge machining and wire cutting.
Holding tools for three-dimensional measuring instruments or various measuring systems.Features• The module design for light weight and easy handling.
• Work pieces can be held on the top face (V face), bottom face, front face and rear face.
• The magnetic force can be turned ON and OFF using a special handle (or hexagonal wrench key) on the front and the rear (two places). The handle mounting area is flat.
• They are of waterproof and oil proof construction.Specifications
Model Holding Power B H L a Weight KVA-1 30kgf 2.36 2.87 3.14 1.49 4.4lbs KVA-2 45kgf 2.36 2.87 4.92 1.49 6.6lbs KVA-3 700N (70kgf) or over 2.36 2.87 7.08 1.49 10lbs
Catalog No. Description Lst Price KVA-1
Magnetic V-Holder (30kgf)
Magnetic V-Holder (45kgf)
$280.00 KVA-3 Magnetic V-Holder (70kgf) $530.00
Click for Magnetic V-Holder Model KVA
Magnetic Holder Base
Model MB-0404The module design for light weight and easy handling.Features
• The base can be mounted and demounted easily using the select lever.
• Compact but powerful magnetic force.
• Waterproof and oil proof construction.
Model Holding Power Price MB-0404 200N (20kgf) or over $100.00
Click for Magnetic Holder Base details
Model HMCCollection of bolts, screws and nails scattered around on the floor!
These MAGHANDs are suitable for collecting iron pieces that are scattered around on the floor or mixed in media. Since they can also be used to remove and collect iron pieces from powder materials, they have a wide range of applications including machining, forging and food processing. They may also be useful in the household.
Model Price HMC-10A $70.00 HMC-50A $100.00
Click for Maghand details
Model HMWIt is suitable to remove cut material from liquid in coolant tank and so on.
In addition, it can be used to remove iron fragments from powder.
Model Price HMW-90 $375.00
Click for Waterproof Maghand details
Table Type Demagnetizer
Model KMDCompact but improved demagnetizing performance!
ApplicationsThese demagnetizers produce an alternating magnetic field on the surface by use of an AC power source through which workpieces are passed to remove the magnetism remaining on their surface.
FeaturesThick workpieces can be demagnetized effectively by passing the front and rear side over the demagnetizer.
These demagnetizers are very powerful and can demagnetize steel materials such as high speed steel, bearing steel, nickel-chrome steel, spring steel, die steel, etc. which are difficult to demagnetize by standard demagnetizers (since these steels have the property similar to magnetic steel which retains residual magnetism and is hard to remove).
These demagnetizers have good heat radiation and can withstand continuous power application.
Click for Table Type Demagnetizer detailsKMD-20C List Price $600.00
Handy Type Demagnetizer
ApplicationsSuitable for demagnetizing tools such as drills, cutting tools, cutters and magnetized slide calipers.
They can also be used for demagnetizing a part of large steel plates.
FeaturesCompact and handy.
Click for Handy Type Demagnetizer detailsKMDH-5 List Price $360.00
Pen Type Demagnetizer
ApplicationsRecommended where magnetism on the surface of metallic workpieces in general need to be reduced in a limited area or locally.
This is useful to completely eliminate weak magnetism that remains locally in jigs and workpieces after they have been demagnetized by a large demagnetizer. It is also suitable for demagnetizing cutters of machines and punches and guide pins of press dies while they are mounted.
Features• A rare earth magnet having strong magnetic force is used at the end of the rotary magnetic field.
• Re-chargeable battery operation. Power can also be supplied by the included AC adapter.
• Handy, maintenance free design with compact style and long life use.
• Environment friendly nickel hydrogen rechargeable battery included.
Click for Pen Type Demagnetizer detailsKMDP-16A List Price $890.00

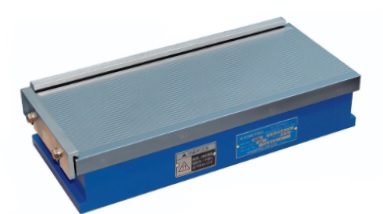

ApplicationsMost widely used electromagnetic chucks for grinding operations.
FeaturesHigh Rigidity, High Reliability and High Accuracy!
Kanetec,s original machining technology is used to realize a lavish body-to-case one piece hollow construction, instead of a welding construction, to enhance the rigidity, minimize change with time passage and improve accuracy of the chucks.
Kanetec's Original Light-Weight Design!
The chuck weight has been reduced as much as possible in consideration of driving the table of grinders. This design helps contribute to a longer service life of grinders.
Simple Thin Type yet Strong Holding Power!
The chucks have been designed as low as possible to increase a workpiece mounting space on the grinder. The total height is as short as 70 mm to 80 mm for small and medium types and 85 mm for large types, thus various types of workpieces can be held. Though thin, Kanetec,s original design to secure an electromagnetic coil space ensures strong holding power.
Model Price KET-3060 $2,800.00 KESL-3600 $2,940.00 KET-4080 $4,800.00 KESL-4080 $4,800.00
Click for Standard Type details
